제품정보 > ⊙ 캐리어 암 > [SUS] GTH 48 / GTH 60 suspension system

[SUS] GTH 48 / GTH 60 suspension system

위생 어플리케이션을 위한
스테인레스 스틸 원형 파이프 시스템
파이프 직경 48mm 및 60mm
파이프 버전 I, S, J 세가지 모양
구성 요소는 나사로 고정
요청에 따라 스페셜 사이즈 가증

Technical Data

재질

Tube:stainless steel 1.4301

System components:stainless steel 1.4305

보호등급

IP 65 according EN 60529

온도범위

-25℃ to +60℃

케이블 공간

GTH 48 : 41mm

GTH 60 : 53mm

표면처리

tube : grinded, grain 240

프로그램
이미지	모델명	오더번호
	GTH 48	-
	Coupling	57.01 73 00
	Coupling EMC	57.01 73 01
	Coupling for external tube fitting	57.01 73 02
	Top-mounted joint	57.01 66 00
	Top-mounted joint EMC	57.01 66 01
	Top-mounted joint for external fitting	57.01 66 02

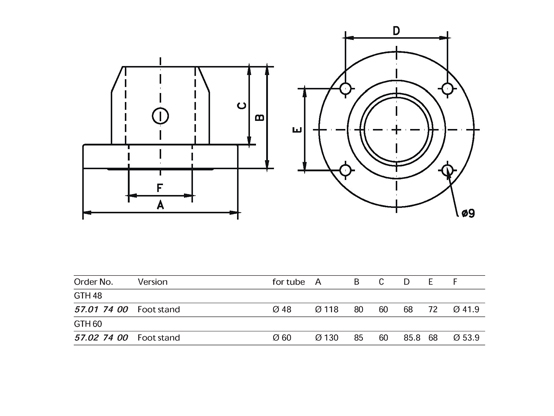

	Foot stand	57.01 74 00
	Foot stand with cable outlet	57.01 72 00

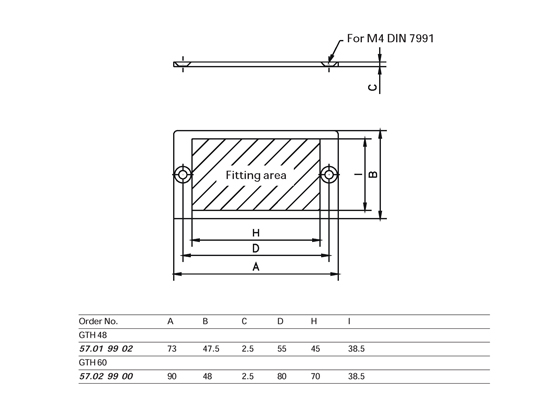

	Spare blind flange	57.01 99 02
	Wall bracket	57.01 79 00

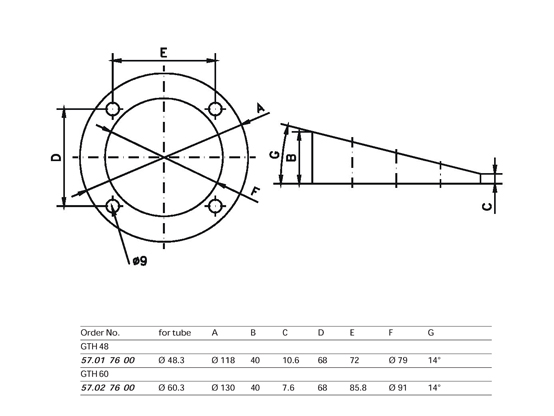

	Console adapter	57.01 76 00

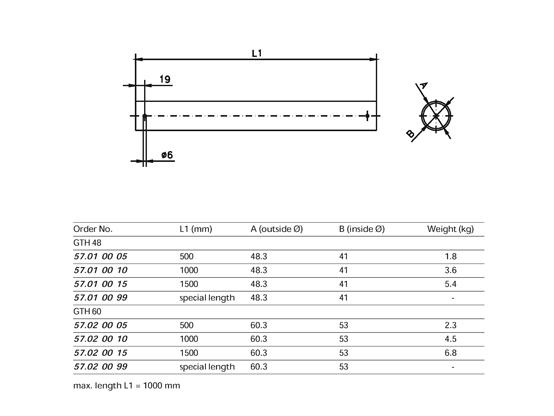

	Connecting tube I (500)	57.01 00 05
	Connecting tube I (1000)	57.01 00 10
	Connecting tube I (1500)	57.01 00 15
	Connecting tube I (special)	57.01 00 99

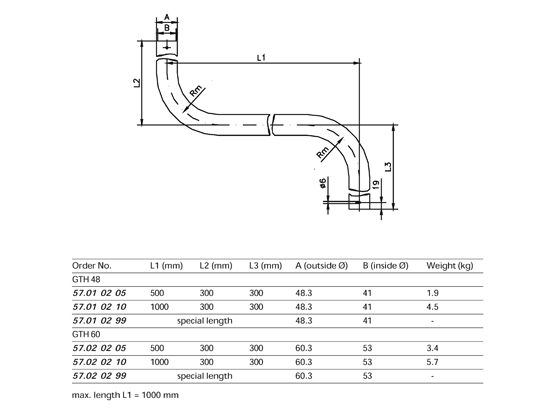

	Connecting tube S (500)	57.01 02 05
	Connecting tube S (1000)	57.01 02 10
	Connecting tube S (Special)	57.01 02 99

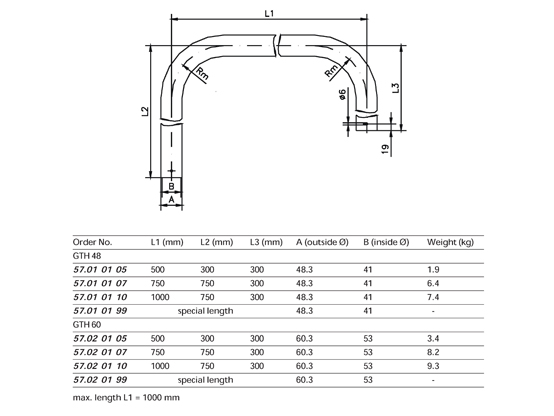

	Connecting tube J (500)	57.01 01 05
	Connecting tube J (750)	57.01 01 07
	Connecting tube J (1000)	57.01 01 10
	Connecting tube J (Special)	57.01 01 99
	GTH 60	-

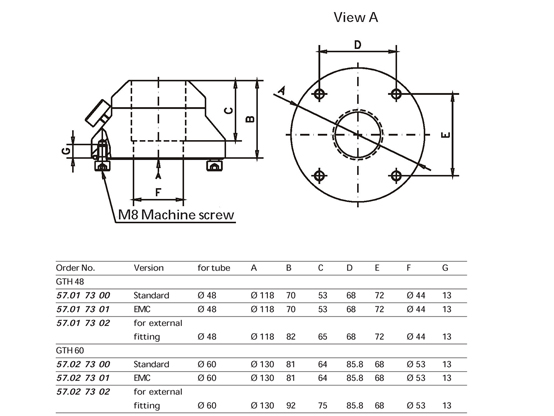

	Coupling	57.02 73 00
	Coupling EMC	57.02 73 01
	Coupling for external tube fitting	57.02 73 02

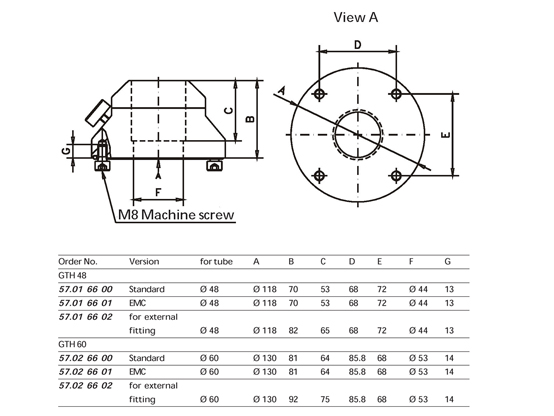

	Top-mounted joint	57.02 66 00
	Top-mounted joint EMC	57.02 66 01
	Top-mounted joint for external fitting	57.02 66 02
	Foot stand	57.02 74 00

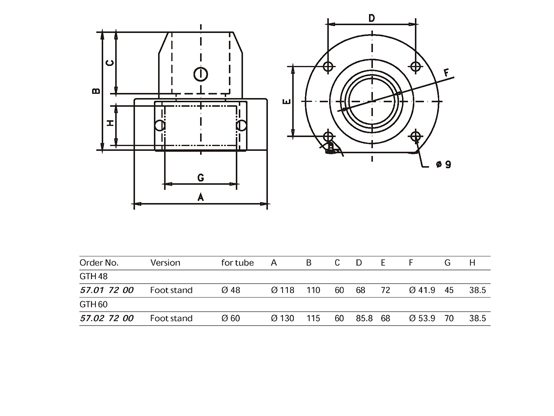

	Foot stand with cable outlet	57.02 72 00
	Spare blind flange	57.02 99 00

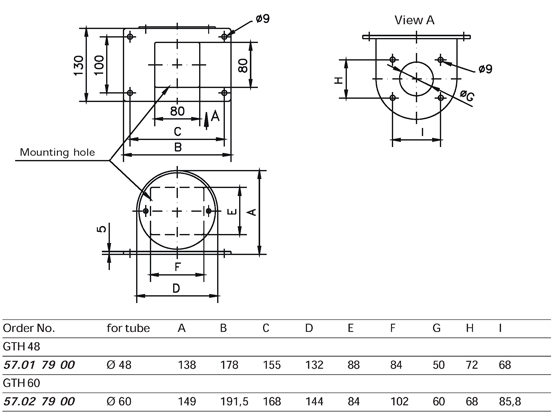

	Wall bracket	57.02 79 00
	Console adapter	57.02 76 00
	Connecting tube I (500)	57.02 00 05
	Connecting tube I (1000)	57.02 00 10
	Connecting tube I (1500)	57.02 00 15
	Connecting tube I (special)	57.02 00 99
	Connecting tube S (500)	57.01 02 05
	Connecting tube S (1000)	57.02 02 10
	Connecting tube S (Special)	57.02 02 99
	Connecting tube J (500)	57.02 01 05
	Connecting tube J (750)	57.02 01 07
	Connecting tube J (1000)	57. 02 01 10
	Connecting tube J (Special)	57.02 01 99
